The Bedan
While the bedan is quite common here in France, it seems it's not the case everywhere, and I've seen several questions posted on forums regarding this tool: what is it, how to use it, ...
Bedan comes from the French word "bédane" (duck beak, as duck
is anas in Latin). I don't know if it's related to the shape or whatever.
This tool is pretty old, and was used for turning before gouges appeared.
While it is mostly used for spindle turning, it can also be used for hollowing.
|
|
|
| A Bedan looks like this: a square section (sometimes trapezoid), with one bevel. This one is 10*10 mm. | ||
Sizing
|

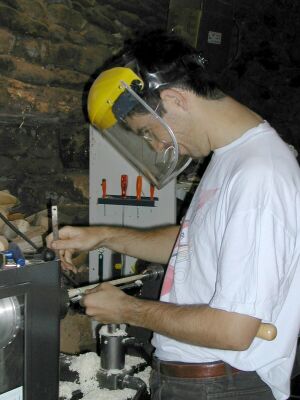

The bedan can be used to turn a piece to a precise diameter, more easily than with a gouge. Use a sliding caliper set to the desired diameter in one hand (going over the piece, take care to sleeves or things that could be caught by the revolving piece), and the bedan in the other hand, with the handle under your armpit. Gently decrease the diameter with the bedan, until the caliper passes "through" the piece. |
 |
 |
 |
 |

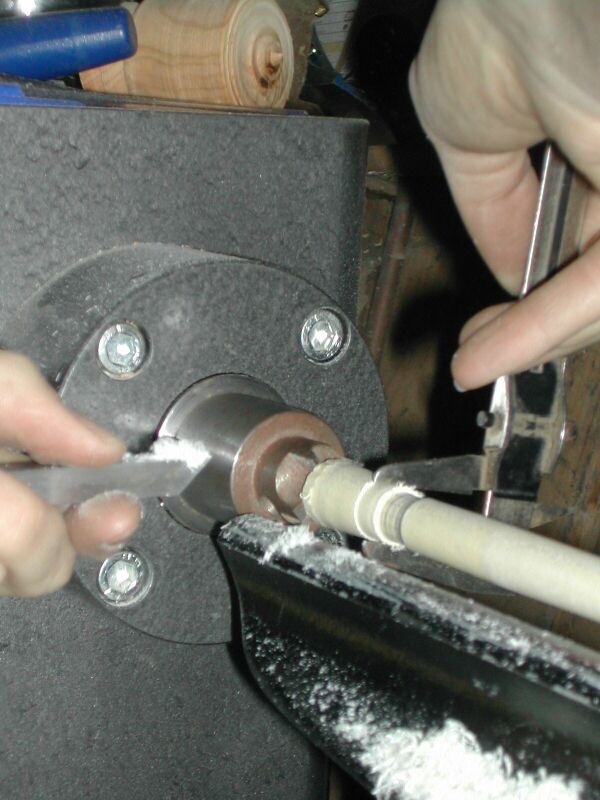

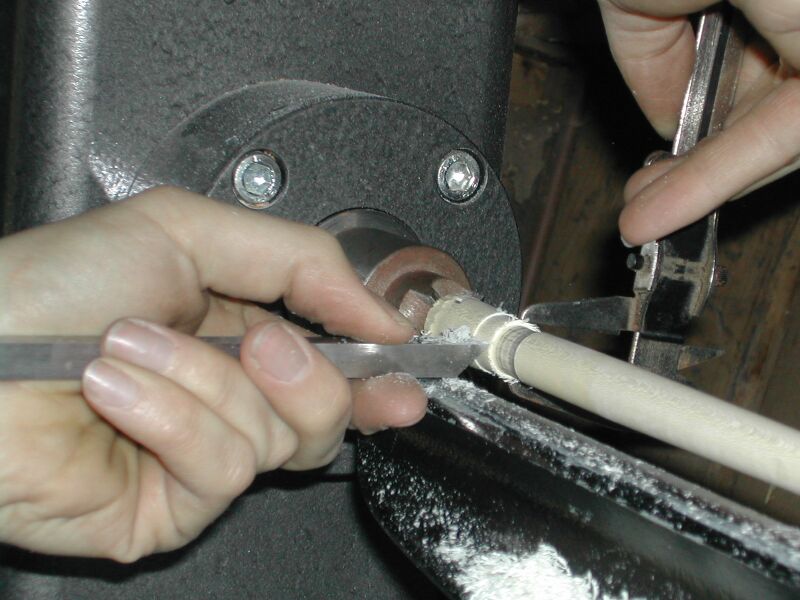

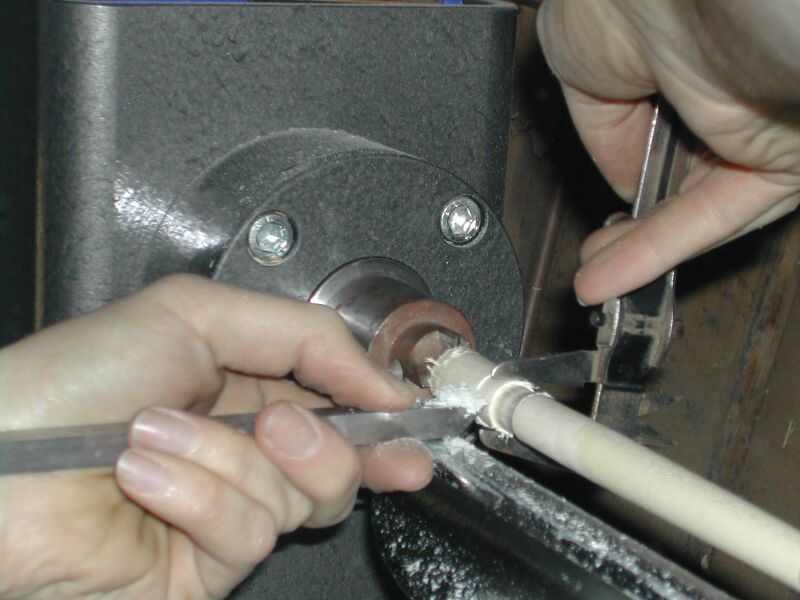

| Decrease diameter | until it fits in the caliper | Easy, no ? |

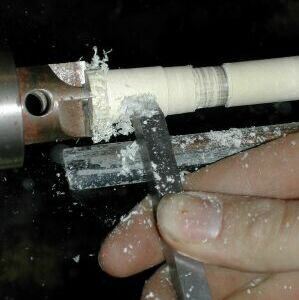

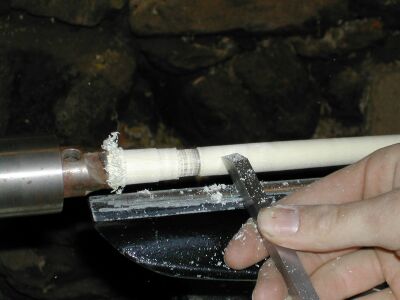

Spindle turning
This is very usefull when turning long/thin pieces. |
 |

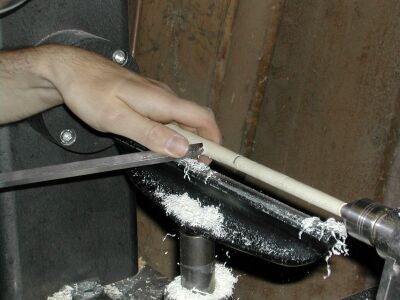

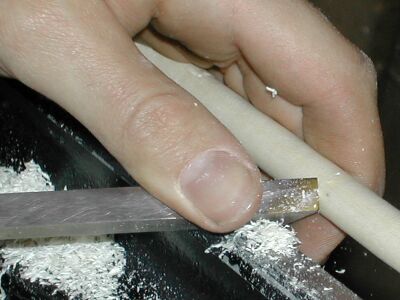

...Or up
 |
 |
Chucking
 |
Very useful to turn a dovetail tenon, with clean straight edges |
Links
Jean-Françcois Escoulen now sells his own bedan, made out of forged HSS. (no connection with him)
